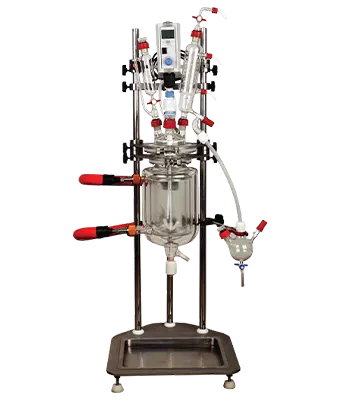

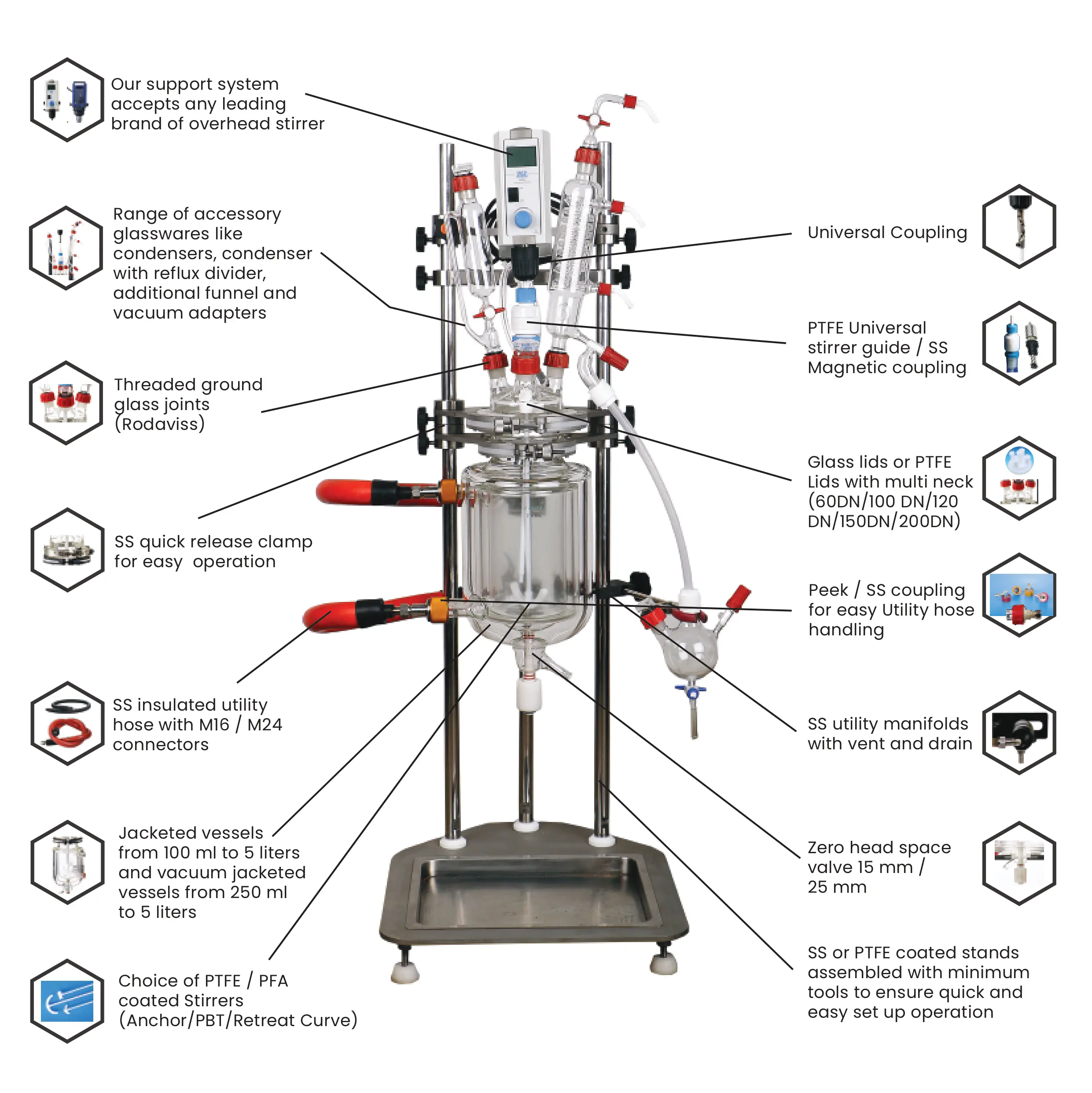

Benchtop Batch Reactors – 100 ml to 2000 ml
- Jacketed (double wall) and Vacuum Jacketed (triple wall) vessels from 100 ml to 2000 ml
- 15 mm and 25 flush bottom valves (Zero hold-up volume)
- Custom-designed vessels with or without baffles
- Pressure ranges from 10 mbar to 0.5 bar
- Temperature options: -50 to 180°C and -80 to 200°C
- Clamp sizes DN 60 for 100 to 500 ml, DN 100, and DN 120 for 500 ml, 1000 ml, and 2000 ml
- Additional glassware accessories as per your requirement/custom design
Click Here to Know Features.

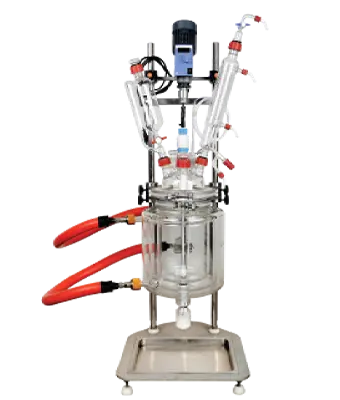

Batch Reactors – 3000 ml to 5000 ml
- Jacketed (double wall) and Vacuum Jacketed (triple wall) vessels from 3000 ml to 5000 ml
- 15 mm and 25 flush bottom valves (Zero hold up volume)
- Custom-designed vessels with or without baffles
- Pressure ranges from 10 mbar to 0.5 bar
- Temperature options: -50 to 180°C and -80 to 200°C
- Clamp sizes DN120 and DN150 for 3000 ml and DN150 and DN200 for 5000 m
- Additional glassware accessories as per your requirement/custom design

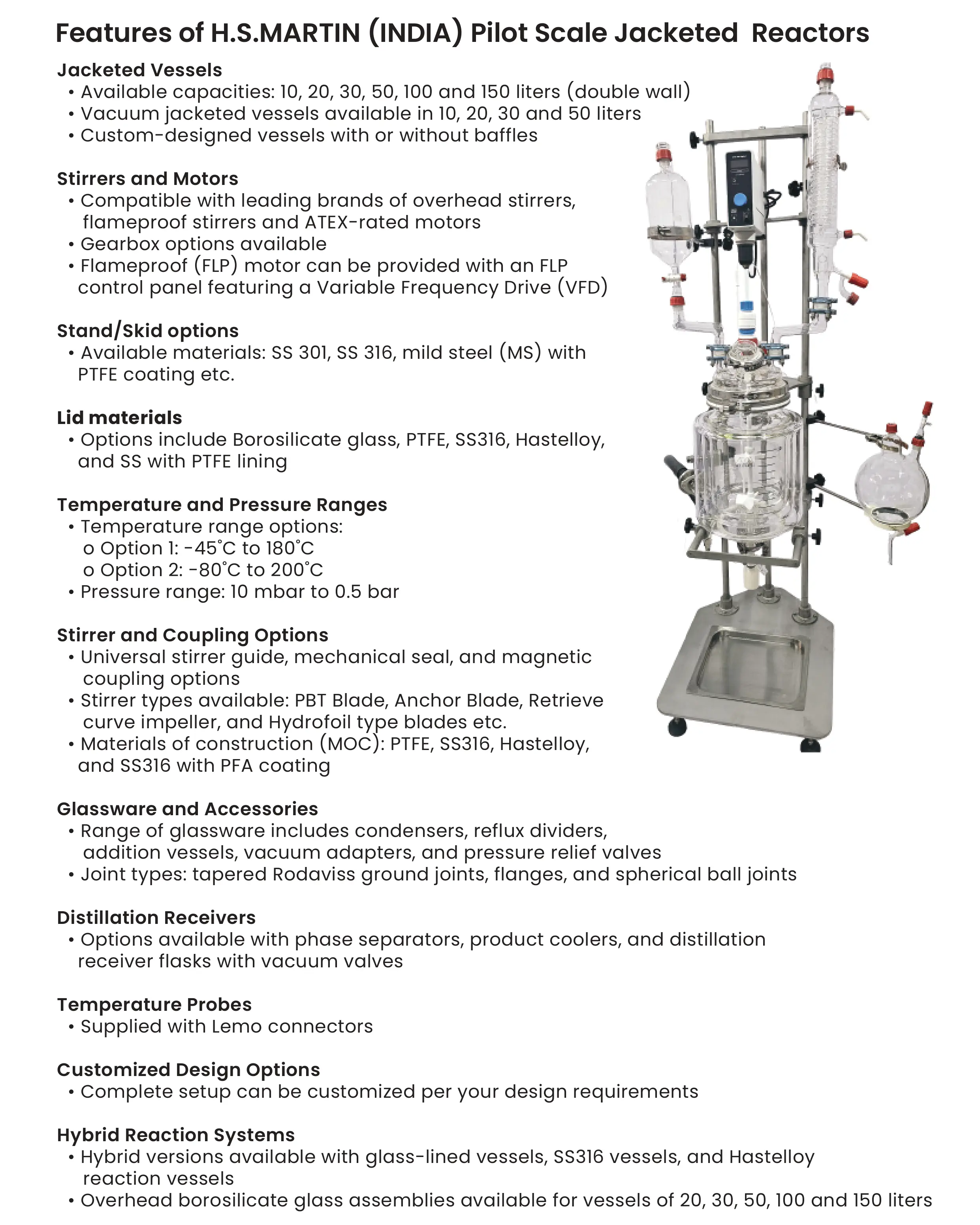

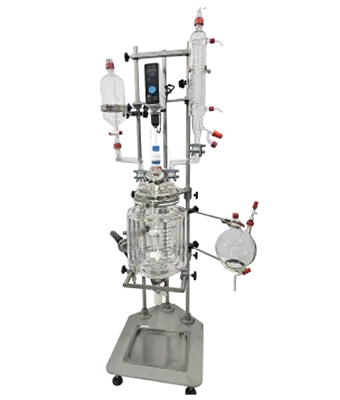

Pilot Scale Reactors – 10 L to 150 L
- Jacketed (double wall) from 10L, 20L, 30L, 50L, 100L and 150L and Vacuum Jacketed (triple wall) vessels 10L, 20L, 30L and 50L
- 25 mm flush bottom valves (Zero hold up volume) with fixed or detachable type bottom valve
- Custom-designed vessels with or without baffles
- Pressure ranges from 10 mbar to 0.5 bar
- Temperature options: -50 to 180°C and -80 to 200°C
- Clamp Sizes DN 200 and DN 300
- Supplied along with complete glass assembly including distillation receiver
Click Here to Know Features.

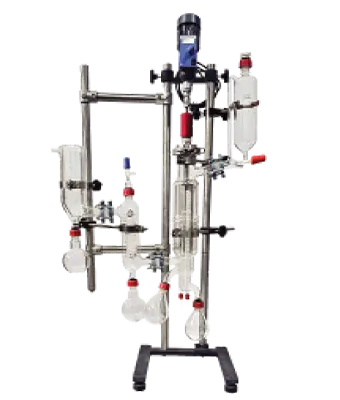

Short-Path Distillation Unit
- Provides excellent performance at the lab scale
- Ideal for separating a variety of volatile mixtures with high boiling points
- Ensures gentle and efficient separation with minimal thermal degradation
- Versatile applications
- Highly suitable for small-scale production, process development, pilot studies and troubleshooting
- SPDU 05 - 0.05 m² evaporation area
- SPDU 1 - 0.1 m² evaporation area

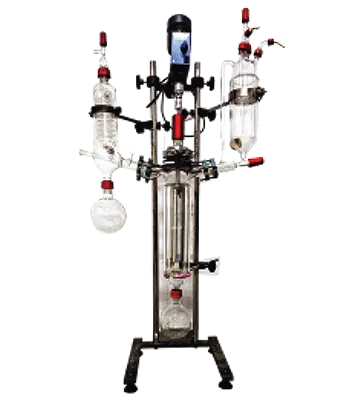

Glass Wiping Film Evaporators
- Ideal for separating volatile components from heat-sensitive,viscous, and fouling chemical mixtures
- PTFE wipers form a thin film on the evaporation column for efficient separation
- All glass design allows visual monitoring
- Adjustable feed rate provides precise control over film formation
- WFE 05: Evaporation surface area 0.05 m²
- WFE 1: Evaporation surface area 0.1 m²

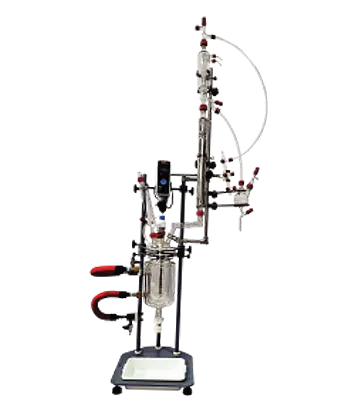

Fractional Distillation Unit
- Vacuum-sealed, jacketed column
- Optional silvering for enhanced efficiency
- Customizable column packing options including structured or alternative packing materials
- Available in capacities ranging from 1000 ml to 20 liters

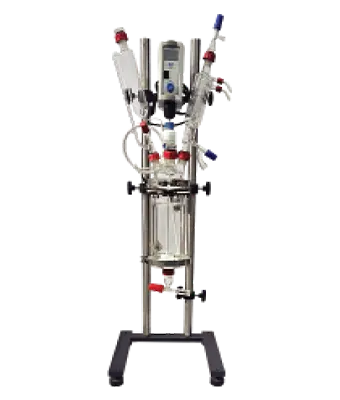

Filter Reactor
- Vessel capacity: 1000 ml, 2000 ml, 3000 ml, and 5000 ml
- Single-wall or double-wall fully jacketed options
- Operating pressure range from full vacuum to 0.5 bar
- Optional overhead stirrer and additional accessories
- Bench-top ANFT (Additional Nutsch Filter Technology) available
